Data Manipulation Components

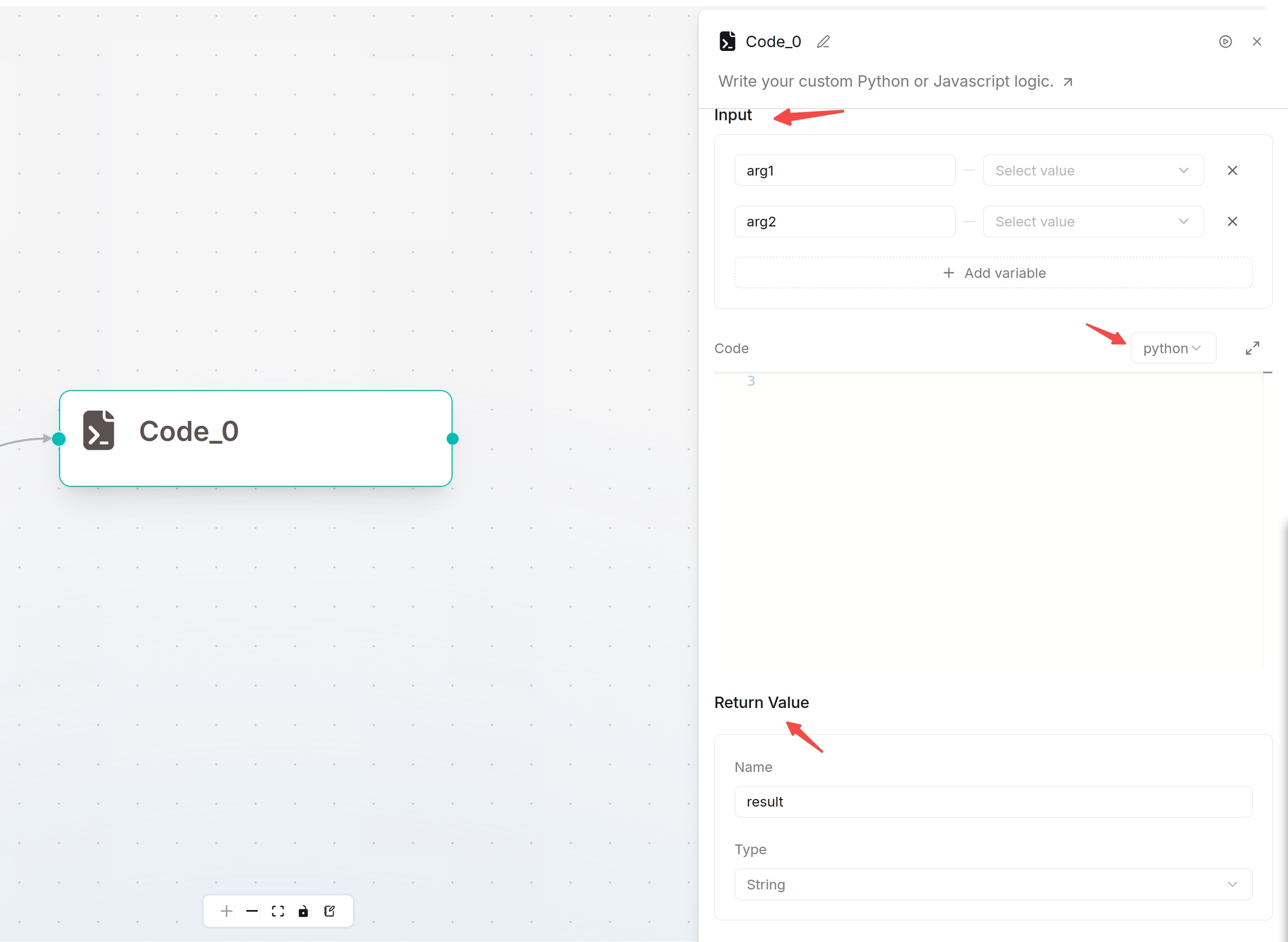

Code Component

The Code component executes Python or JavaScript code for complex data processing, format conversion, calculation, file generation and custom logic.

Prerequisite: The Code component depends on a secure sandbox environment. The deployment environment needs to install and enable gVisor, RAGFlow sandbox and related environment variables. Restart the service after dependency changes.

Configuration:

1. Input: Define parameters passed into code; variables can be directly referenced inside scripts.
2. Code: Select Python or JavaScript and write business logic.
3. Return Value: Define output data returned to downstream components.

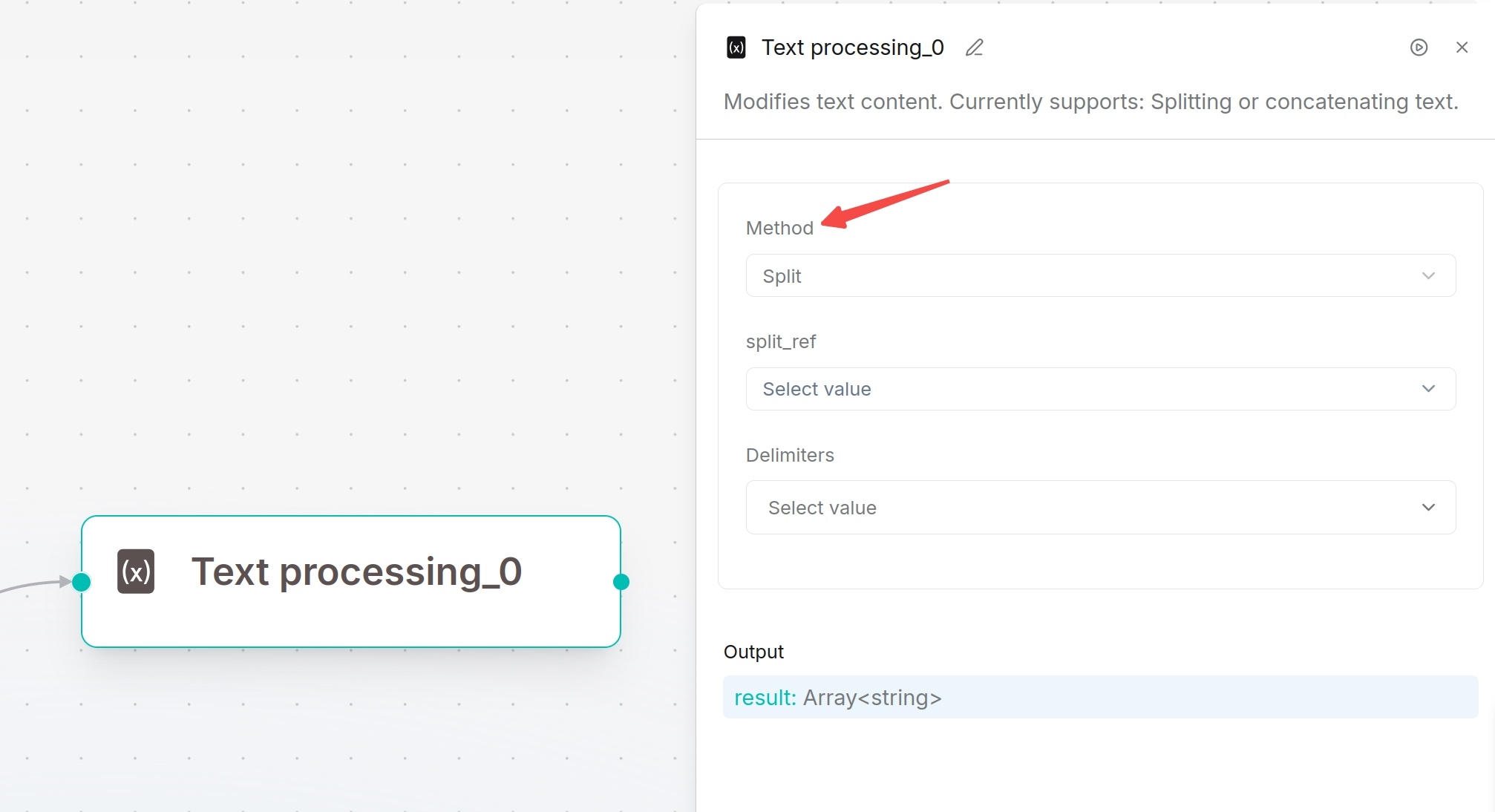

Text Processing Component

Text Processing splits or merges text. Used to split long upstream text by separators or combine multiple variables into one template.

Processing Modes:

• Merge: Concatenate content sequentially
• Split: Split text by specified delimiters (comma, line break, space etc.)

Configure script content with variables inserted via /. Output results can be referenced by subsequent nodes.

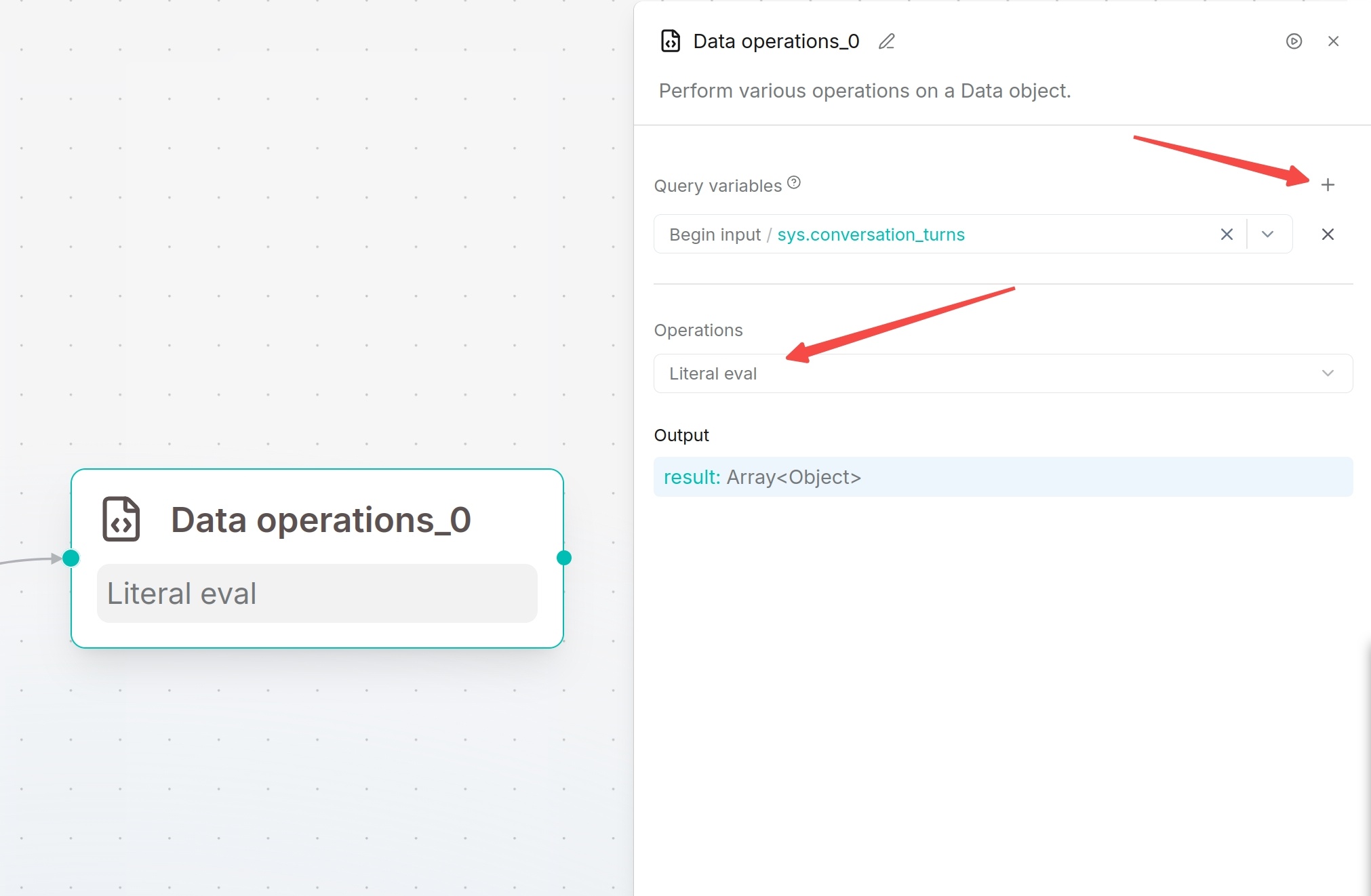

Data Operation Component

Data Operation processes structured objects returned by upstream tools, code or database nodes to clean data for downstream usage.

Configuration Steps:

1. Add and select the Data Operation component on canvas.
2. Select target data variables in Query variables.
3. Click + to add multiple input variables. Query variables are mandatory.
4. Select processing operation in Operations and fill corresponding configurations.
5. Save and run tests.

Output: Processed data stored in variable result.

Supported Operations:

Operation	Function	Scenario
Select keys	Keep only specified fields	Extract required fields for downstream nodes
Literal eval	Convert string-formatted list/dict/bool/number into actual data types	Parse serialized structured strings
Combine	Merge multiple objects into one	Aggregate outputs from multiple upstream nodes
Filter values	Filter data matching conditions	Filter array/object collections
Append or update	Add new fields or overwrite existing field values	Supplement or modify object attributes
Remove keys	Delete specified fields	Remove unnecessary sensitive or unused fields
Rename keys	Rename object field keys	Unify field naming standards

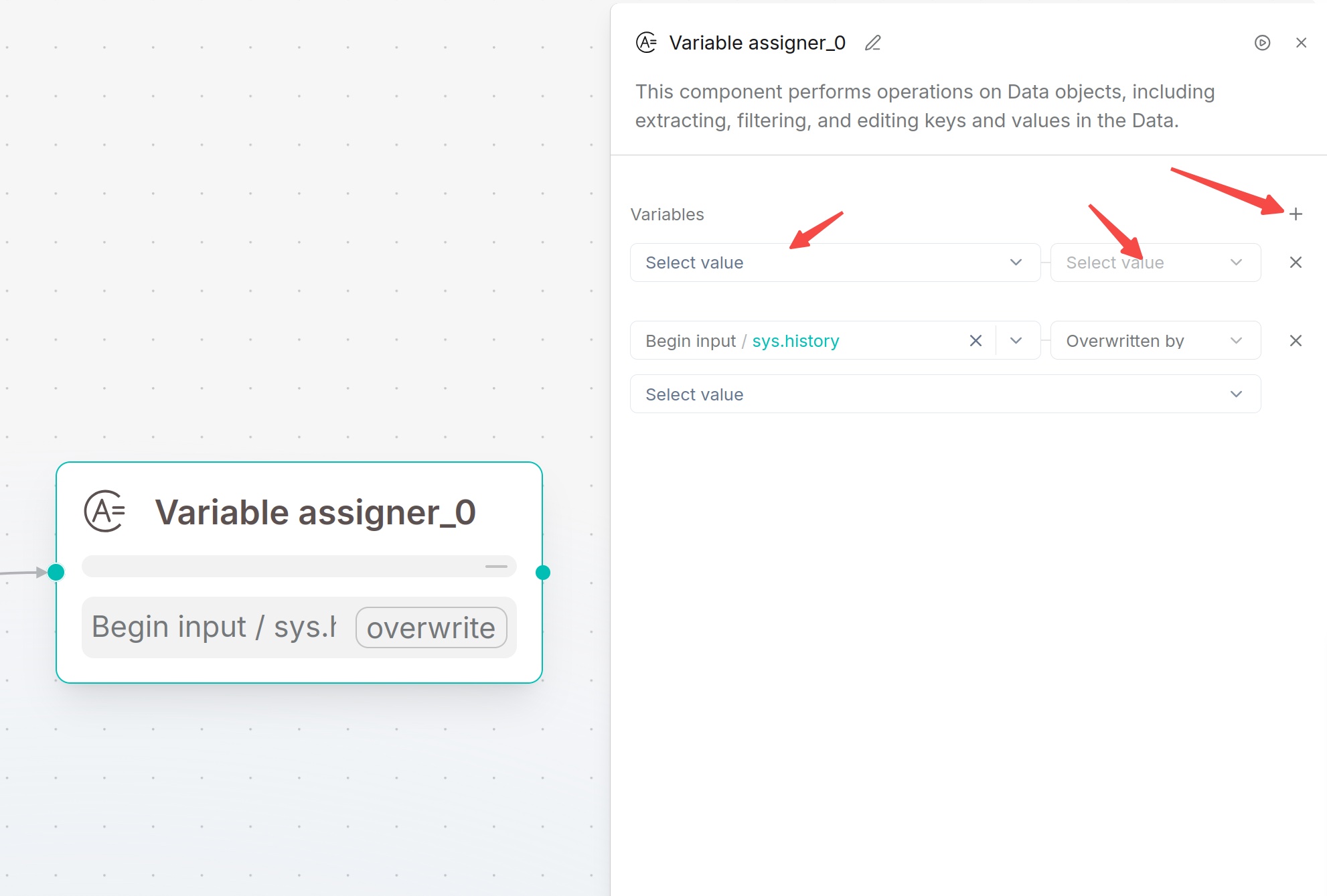

Variable Assignor Component

Variable Assignor writes or updates variables during workflow execution. It can save upstream results to target variables and support overwrite, clear, append and arithmetic operations for numbers, arrays and objects.

Configuration: Add variable rules. Select target variable, choose operation type, and fill constant or reference variable as value if required. Multiple rules execute sequentially.

Supported Operations:

Operation	Requires Value	Description
Overwritten by	Yes	Overwrite target variable with another variable's value
Set	Yes	Assign fixed constant value to target variable
Clear	No	Empty the target variable

List Operation Component

List Operation processes array data, supporting element extraction, head/tail fetching, filtering, sorting and deduplication. Suitable for array outputs from Begin, HTTP Request, Code and SQL.

Configuration:

1. Select array variable in Query variables.
2. Choose operation in Operations and fill parameters.
3. Optional: Enable Strict mode.

Strict Mode:

• Enabled: Return error when input data format is abnormal
• Disabled: Handle abnormal data with default tolerance

Supported Operations:

• Nth: Get element at specified index (starting from 0)
• Head: Get first N elements
• Tail: Get last N elements
• Filter: Filter array by conditions
• Sort: Sort array by specified field (asc/desc)
• Drop duplicates: Remove duplicate entries

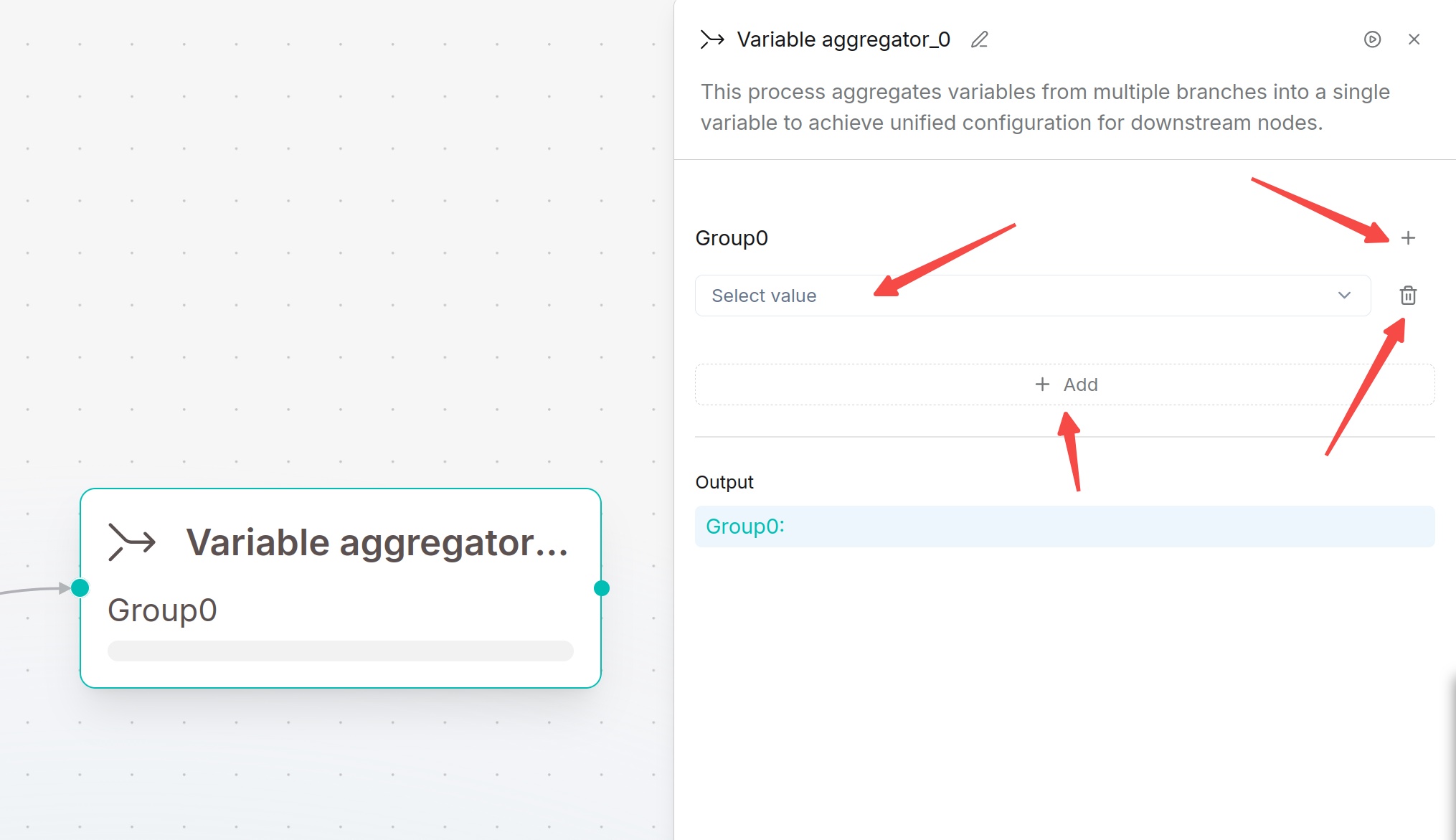

Variable Aggregator Component

Variable Aggregator combines multiple independent variables into one output group for unified reference by downstream nodes. Widely used in multi-branch conditional workflows to collect data from different branches.

Configuration:

1. Select variables and add into variable groups (default Group0).
2. Click + to create new variable groups; delete groups via remove button.
3. Save configuration and run tests.

Output: Variables inside each group can be referenced via group name such as Group0.
