Bump every @copilotkit/* dependency across the showcase integrations and
the shell from 1.60.2 (and stray "latest" override pins) to an exact
1.61.1 pin, and move the canonical pin source of truth to match.
Regenerate each standalone npm package-lock.json with the same
--legacy-peer-deps flag the Dockerfiles use for "npm ci".
- showcase/integrations/*/package.json + package-lock.json
- showcase/integrations/langgraph-typescript/src/agent/*
- showcase/shell/package.json + package-lock.json
- showcase/scripts/showcase-canonical-pins.json: canonical 1.60.2 to 1.61.1
aimock stays on its own version line (1.26.1). The Python copilotkit SDK
was already 0.1.94 across every requirements.txt, so no change there.
validate-pins ratchet is unchanged (FAIL=38, identical hash);
validate-parity, validate-fixture-tool-surface, and the showcase/scripts
vitest suite (2102 tests) all pass.
Adding a2ui-recovery to the shared feature-registry cross-joins it across all
20 integrations (wired for google-adk, unshipped elsewhere), so the catalog
generator's hardcoded counts move: cross-join 920->940, metadata.total_cells
900->920, LGP 46->47 (unshipped 7->8). docs_only stays 20; the relative
sum-checks are unchanged. Fixes the Validate Showcase failure on #5662.
Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
The pool-fleet migration is complete: the control-plane harness plus the
prod workers (deployed 2026-06-19, HARNESS_ROLE=worker, pool count 2) now
cover every probe dimension the interim `harness-legacy` fleet-migration
bridge was holding live, so `harness-legacy` is dead config.
This is the code-side cleanup only:
- Remove the `harness-legacy` entry from the railway-envs SSOT and the
now-dead `key === "harness-legacy"` special-case in computePromoteClosure.
- Regenerate railway-envs.generated.json (41 -> 40 services).
- Drop harness-legacy from the golden snapshot, the gateIgnore expectation
sets, the promote-notify fixtures, and the redeploy-env doc comments;
update the service-count assertions (41 -> 40).
- Fix the stale "STAGING-ONLY" harness-workers comment: prod workers are
live on Railway, though this SSOT entry still models the staging
instance only (no prod env backfilled here yet).
The live Railway `harness-legacy` service is torn down separately as a
follow-up infra step.
Promote-notify Slack message: name the promoted AND failed services (one
Failed: header + bullets), legible "(N): <names>" count, real wall-clock
elapsed (integer-coerced), and drop the constant verify-prod legend line.
Durable healthcheckPath: track it per-service/env in the SSOT (railway-envs),
re-assert it on the promote pin path (omit-when-absent, never null), and route
deploy-to-railway provisioning through isTrackedService/resolveProvisionHealthcheck
so a tracked-null service omits the healthcheck while an untracked one keeps the
/api/health default — fixing the silent prod-healthcheck drift that refused aimock.
Tests: ruby pin-reassert spec + deploy-to-railway healthcheck spec + emit/golden/accessor.
Flip the 12 starter-* services to behave like every other managed
showcase service: always-on and staging-probed.
- railway-envs SSOT: staging probe false -> true for all 12 starters
(prod was already on); refresh the stale "staging probe OFF" /
fail-loud-placeholder doc-comments to reflect baseline-driver verification.
- provision-starter-fleet: sleepApplication true -> false so the
provisioner creates always-on (not sleepable) Railway instances; update
the "the whole point — sleepable" header/inline comments + log lines.
- Regenerate railway-envs.generated.json (emit-railway-envs-json.ts) and
the golden fixture; update the SSOT probe + provisioner sleep assertions.
Replace the fail-loud `case "starter"` stub in verify-deploy's dispatch
switch with a real baseline liveness driver. The starter-template fleet
EXPOSEs only its Next.js frontend (serving `/` and `/api/copilotkit`,
NO `/api/health`), so the driver healthchecks `/` via probeBaseline,
exactly like the Next.js shells: deployment-SUCCESS + HTTP 200 on `/`.
promote-fleet.sh now emits a base64 results JSON (schema_version=1) with
both succeeded[] and failed[] alongside the existing succeeded_csv /
staging_drift outputs. showcase_promote.yml's notify job replaces the old
inline two-state (success/failure) notifier — which dumped the full
requested CSV and mislabeled any partial promote as a blanket Failed — with
a single dispatch of the previously-orphaned showcase_promote_notify.yml
renderer (success / partial / total). The dispatch enriches promote-fleet's
results blob with run context (6-hex run_id, trigger=workflow, operator,
pre_staging) and authenticates via the devops-bot App token (actions:write),
mirroring canary.yml — the default GITHUB_TOKEN cannot start new workflow runs.
promote-fleet has no failure taxonomy, so each failed entry uses the default
category "promote-failed".
Adds a durable persistence layer for @copilotkit/bot, replacing the
in-memory-only ActionStore with a pluggable StateStore.
- StateStore interface (kv/list/lock/dedup/queue) with a shared
conformance suite; MemoryStore default plus @copilotkit/bot-store-redis
and @copilotkit/bot-store-postgres backends.
- createBot({ store }): typed per-thread state via Standard Schema,
action snapshots persisted through the store, per-conversation turn
lock (onLockConflict drop|force), and inbound-event dedup keyed on a
stable eventId. ActionStore is kept as a deprecated alias.
- Cross-platform transcripts (bot.transcripts + identity resolver) with
age-bounded retention (prune on append + filter on read), and
runAgent({ transcript: true }) to auto-inject history and capture the
reply.
- createBot({ components }) re-registers components so durable actions
re-fire after a restart; restart-durability demo in examples/slack.
- Dedup is marked seen only after the turn lock is acquired, so a turn
dropped on lock-conflict does not burn its eventId (no lost retries).
- Release lockstep: bot-store-redis/postgres version with bot + bot-ui.
## Summary
An **on-demand** tool to answer "is prod caught up with staging right
now?". The showcase deploy model is **staging = mutable `:latest`**
(continuously rebuilt) and **prod = immutable `@sha256:`** (advances
only on an explicit promote), so a prod column can sit **behind** a
green staging.
**There is no scheduled drift alert — by design.** Prod lagging staging
is **often intentional**: changes are batched and promoted deliberately,
so a recurring "N columns stale" alert would be pure noise. This tool is
therefore manual-only: a maintainer runs it when they want to check, and
it tells them the current state.
- **`bin/railway reconcile-prod`** — for every prod-eligible
(`probe.prod == true`) service, compares the **prod serving digest**
(the `@sha256:` from
`SnapshotCommand.build_snapshot(PRODUCTION_ENV_ID)`) against the
**staging running digest** (reuses
`PromoteCommand#staging_running_digest`, the same source the promote pin
uses). Classifies each:
- `green` — prod == staging (in sync)
- `stale` — prod != staging **and** staging is resolvable (prod is
behind a green staging)
- `gray` — staging running digest not resolvable, or the service has no
prod snapshot entry yet — informational, **not** stale
- Prints a readable per-service table + summary; **exits nonzero iff any
service is stale**; `--json` for machine output. **Read-only — no
promotes/mutations.**
- **`showcase/scripts/reconcile-prod-gate.sh`** — wrapper mirroring
`lint-prod-gate.sh`: surfaces the table into `$GITHUB_STEP_SUMMARY`,
optionally captures `--json` to `RECONCILE_JSON`, and propagates the
exit-code verdict (never swallows a non-zero).
- **`.github/workflows/showcase_reconcile.yml`** — **`workflow_dispatch`
only** (no cron). Regenerates the SSOT JSON (`EMIT_SKIP_OXFMT=1`, same
as the promote workflow's resolve/promote jobs), runs the gate with the
Railway/GHCR auth env, renders the reconcile table to the **GH step
summary**, and uploads the `--json` as a `reconcile-json` artifact. **No
Slack.** The run exits nonzero on a stale column so a manual run visibly
flags drift. `timeout-minutes: 10`.
- **Tests** — Ruby minitest (`test_reconcile_prod.rb`: classification +
exit-code + `--json` shape + dispatcher registration) and a bats gate
test (`reconcile-prod-gate.bats`). Wired the gate script into the
`showcase_validate.yml` shellcheck list.
### What changed from the original scheduled-alert design
The first cut of this PR shipped a daily cron + auto-post to #oss-alerts
on any stale column. Per owner feedback, that was reshaped to on-demand
only: the `schedule:` trigger and the Slack-on-stale step were removed
(intentional/deliberate staleness is not a bug, so an unsolicited
recurring alert is noise). The CLI command, the gate wrapper, and all
tests are unchanged.
## Gates
- `ruby showcase/bin/spec/test_reconcile_prod.rb` → **9 runs, 20
assertions, 0 failures**
- `bats showcase/scripts/__tests__/reconcile-prod-gate.bats` → **6 ok**
- `shellcheck -s bash showcase/scripts/reconcile-prod-gate.sh` →
**clean**
- `actionlint .github/workflows/showcase_reconcile.yml` → **clean** (the
pre-existing `depot-ubuntu-24.04-4` custom-runner-label warning is on
`showcase_validate.yml`, predates this PR — my only change there is one
line in the shellcheck list)
## Test plan
- [ ] CI green (Ruby suite, bats suite, actionlint/shellcheck,
commitlint)
- [ ] Optional: read-only `workflow_dispatch` run of
`showcase_reconcile.yml` to confirm it runs against live prod/staging
(safe — no mutations)
A `shell-docs` promote expanded its dependency closure to include the
always-on Tier-1 verification set (harness, dashboard, …); harness then
tripped a P6 env-divergence WARN-refusal and the tier barrier gated docs
as NOT-ATTEMPTED. docs has no runtime dependency on the control plane.
Introduce a declarative `standalone` service class: a leaf that neither
depends on anything nor gates on anything. computePromoteClosure (TS) and
the resolve-promote-targets jq both skip the Tier-1 union when the request
is entirely standalone, so a standalone request promotes ONLY itself; the
fleet runner promotes `s:`-marked services ungated (never NOT-ATTEMPTED on
an unrelated failure, never gating a tier). Flag `docs` standalone.
Red-green: railway-envs.test.ts (4), resolve-promote-targets.bats (5),
promote-fleet.bats (3) fail on origin/main (docs closure pulls harness;
`s:` is an unknown tier) and pass after the fix.
Prod sitting behind staging is often intentional (changes are batched and
promoted deliberately), so a recurring drift alert is noise. Reshape the
reconcile workflow to manual-only:
- Remove the daily `schedule:` cron trigger — leave only `workflow_dispatch`.
- Remove the auto-Slack-on-stale step (and its SLACK_WEBHOOK env / stale_line
output derivation) — no unsolicited #oss-alerts post on mere staleness.
- A manual run surfaces the reconcile table to the GH step summary, keeps the
cheap `--json` capture as an uploaded artifact, and still exits nonzero on a
stale column so a manual run visibly flags drift.
- De-noise the gate script + bats comments that referenced the removed
scheduled/Slack behavior.
The on-demand CLI (`bin/railway reconcile-prod`), the gate wrapper, and the
Ruby + bats tests are unchanged.
Lever 1 of the promote-reliability hardening plan. The showcase deploy
model is staging=mutable :latest (continuously rebuilt), prod=immutable
@sha256: (advances only on explicit promote), so a prod column can
silently fall BEHIND a green staging — drift today is only noticed by
eyeballing a dead column. This adds proactive, automatic detection.
- bin/railway reconcile-prod: for every prod-eligible (probe.prod==true)
service, compares the prod SERVING digest (LintProd snapshot path) vs
the staging RUNNING digest (reuses PromoteCommand#staging_running_digest).
Classifies green/stale/gray, prints a table + summary, exits 1 iff any
stale. --json for machine output. Read-only: no promotes/mutations.
- scripts/reconcile-prod-gate.sh: wrapper mirroring lint-prod-gate.sh —
surfaces the table to the GH step summary, captures JSON for the Slack
builder, propagates the exit-code verdict.
- .github/workflows/showcase_reconcile.yml: daily cron + workflow_dispatch;
runs the gate; on stale services posts the stale-column list to
#oss-alerts (SLACK_WEBHOOK_OSS_ALERTS) via the fromJSON('"\n"') idiom.
- Tests: Ruby minitest (classification + exit-code, RED-anchored on a
drift-blind classifier) and a bats gate test. Wired the gate script
into the showcase_validate.yml shellcheck list.
Post-promote convergence verification is deferred to a fast-follow.
Two PR checks were red on the new integration:
- check-config-files: add strands-typescript/next.config.ts to the build-
config allowlist.
- Validate Showcase: update the new-integration guard pins that intentionally
trip when an integration is added — BORN_IN_SHOWCASE 6→7, calculator
_from-feature-parity count 18→19, catalog cross-join 874→920 / total_cells
855→900 / docs_only 19→20 (46 features × 20 integrations), and the aimock
substring-shadow ceiling 132→133 (+1 from the strands-typescript calculator
fixture).
Also drop the premature deploy wiring: strands-typescript is removed from
showcase_build.yml (matrix + path filter + ALL_SERVICES) because it has no
Railway service yet (deployed: false) and the railway-envs SSOT test requires
a real service entry. It re-enters the deploy pipeline when the Railway
service is provisioned (external setup per INTEGRATION-CHECKLIST).
## What
Adds **cvdiag** — a permanent, always-available observability subsystem
for the showcase, built to diagnose the red↔green cell flap on the
staging dashboard and to make that diagnosis a dashboard query rather
than a multi-day forensic hunt in the future.
Captures the full request path with `X-Test-Id` correlation across
**probe → backend → aimock → edge**, across every integration
(TypeScript, Python, Java/spring-ai, .NET):
- Per-language backend emitters (canonical + staged/compile-linked
mirrors), all sharing one schema (`schema.json`, closed-world
`additionalProperties:false`).
- CREATE-only writes to two new PocketBase collections: `cvdiag_events`
and `cvdiag_raw_byte_samples` (additive migrations — no existing data
touched).
- An 8-class flap classifier mapping to the observed failure signatures
(`sse-missing` / `text-unstable` / `dom-missing`).
- DEBUG-tier raw-byte capture (secret-scrubbed) and HMAC-guarded A/B
edge-interference detection.
## Why
The runId flap-fix (`cdc1e90e`, 2026-06-09) did **not** fully resolve
the flap — it was still observed 2026-06-19. cvdiag exists so the
*remaining* cause is observed live with full correlation instead of
inferred.
## Safety / enablement
- **Inert by default.** With `CVDIAG_BACKEND_EMITTER` unset the
subsystem performs zero host mutation (no logging-config changes, no
threads/tasks, no stdout) — verified by
`test_cvdiag_inert_when_disabled`. **To accumulate data, set
`CVDIAG_BACKEND_EMITTER=1` on the showcase services.**
- All per-language scrubbers match the canonical `scrubSecrets`
(sk-/base64url, Bearer, colon-less URL userinfo, size-guard) — verified
with real toolchains (vitest / mvn / dotnet).
- Merged latest `main` (only conflict: a clean `.csproj` include union).
## Verification
- harness `tsc --noEmit` ✓ · `src/cvdiag` vitest 251/251 ✓ ·
`cvdiag-stage-ts --check` in-sync ✓
- Java MessageScrubber 17/17 (mvn) ✓ · .NET CvdiagBackend 5/5 (dotnet
sdk:9.0) ✓ · Python emitters 93/93 (3.12) ✓
🤖 Generated with [Claude Code](https://claude.com/claude-code)
Adds a minimal Angular quick-start guide and wires Angular into the docs
**frontend picker** introduced in #5586. Connects directly to an AG-UI
agent via `HttpAgent`, no runtime required.
Closes
[OSS-252](https://linear.app/copilotkit/issue/OSS-252/add-angular-quick-start-guide).

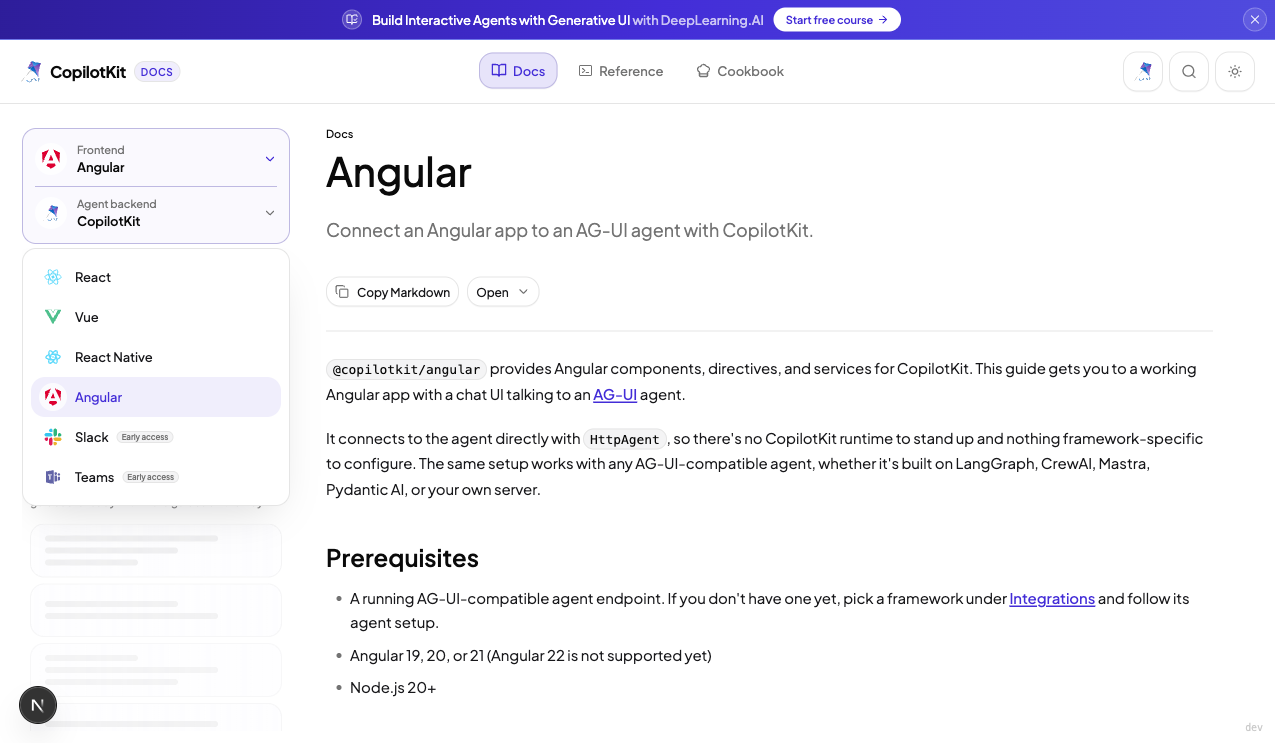

### Angular in the frontend picker
- Guide lives at `content/docs/frontends/angular.mdx`, served at
`/angular` like the other frontends
- Registered `angular` in `frontend-options` (+ `SiAngular` logo),
`search-hrefs`, the search-index pages, and the typed reference-slug
record
- Not flagged early access (parity with Vue / React Native)

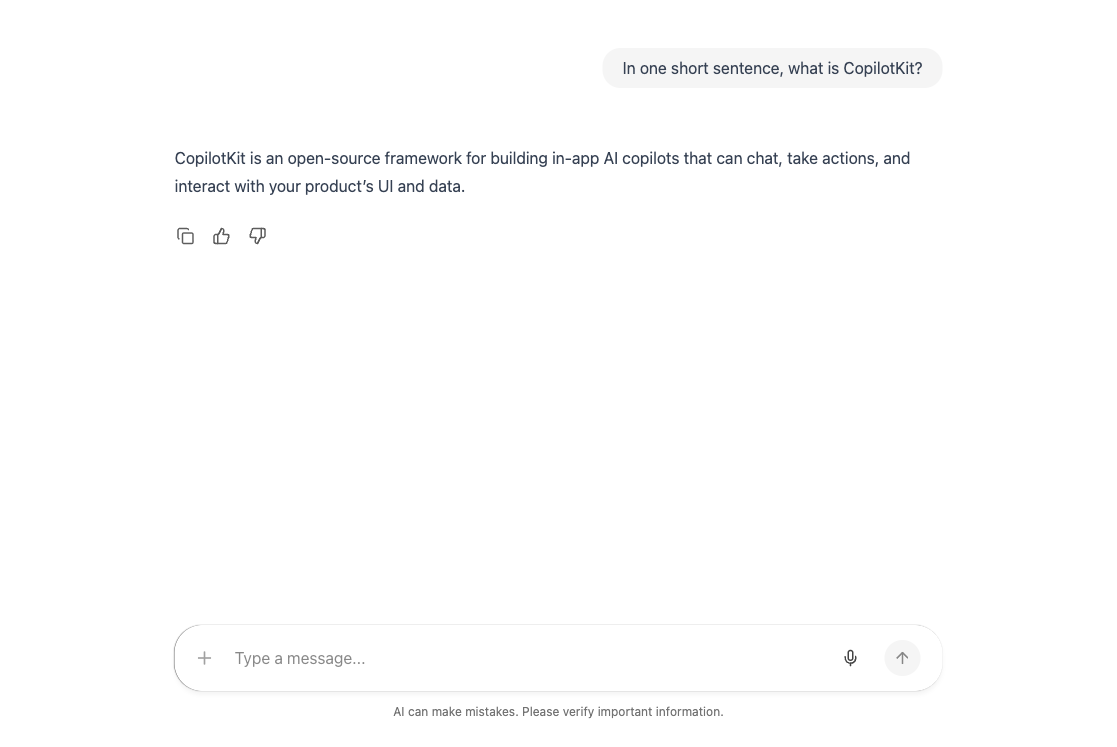

### Verified end-to-end
Built a fresh Angular 21 app, followed the guide verbatim, and got a
live streamed reply. shell-docs typecheck and the frontend unit tests
(8/8) pass.
Key specifics from that validation: install **`@copilotkit/angular`**
(the deprecated `@copilotkitnext/angular` is renamed), no TS7016
workaround needed (the package ships types), and pin `@angular/cli@21`
since `@latest` (v22) is outside the `19-21` peer range.
> Reference-docs link points at `/reference` for now; it should switch
to `/reference/angular` once the Angular reference PR (#5585) lands.
> The in-repo package is still `@copilotkitnext/angular`; the
`@copilotkit/angular` rename only landed on npm 2026-06-18. Renaming in
source is a separate follow-up.
_Screenshots live on the `assets/oss-252-angular-quickstart` branch to
keep this diff scoped._
The showcase_promote.yml resolve-targets job runs
`emit-railway-envs-json.ts`, which shells out to the repo-root
`node_modules/.bin/oxfmt` to produce oxfmt-canonical JSON. That job's
`npm ci` runs in showcase/scripts only and never installs the root oxfmt
binary, so every promote dispatch died at "Generate SSOT artifact" with
`spawnSync .../node_modules/.bin/oxfmt ENOENT` (exit 1) — blocking ALL
promotes, including the team's regular shell-docs promote, since the last
green run on 2026-06-18.
The emitted JSON on the resolve-targets / promote path is EPHEMERAL: it
is parsed in-memory by jq (resolve-promote-targets.sh) and bin/railway to
pick the promote target and is NEVER committed, so oxfmt-canonical
formatting is irrelevant there. Add an explicit `EMIT_SKIP_OXFMT=1`
opt-out that returns the raw `JSON.stringify` form, and set it on both
ephemeral workflow steps.
The DEFAULT (committed-artifact) path is unchanged: oxfmt stays REQUIRED
and fails loud if the binary is absent, because the committed
railway-envs.generated.json must stay oxfmt-canonical or CI's
static_quality.yml `oxfmt --check` auto-format bot fires on the drift.
This is opt-IN-to-skip, never silent-on-absence.
Call sites of emit-railway-envs-json.ts:
- showcase_promote.yml resolve-targets — EMIT_SKIP_OXFMT=1 (this fix).
- showcase_promote.yml promote — EMIT_SKIP_OXFMT=1 (this fix).
- static_quality.yml committed-artifact `--check` — unset, oxfmt required.
- resolve-verify-matrix.ts (showcase_deploy.yml) — only invokes the
emitter when the committed JSON is absent; the checkout always has it,
so the default (oxfmt) path is correct and unchanged.
Tests: 2037 showcase/scripts tests pass; 2 new EMIT_SKIP_OXFMT unit tests
assert the skip path emits valid (raw) JSON; the existing oxfmt-canonical
golden tests still gate the committed path.
Add the Angular frontend quick-start at content/docs/frontends/angular.mdx
and wire it into the frontend picker (options, logo, page content, search
hrefs, search-index generation).
Regenerated the stale committed showcase_promote.yml so the 12 starter-*
services (+ shell-docs and all existing targets) appear in the service
dispatch choice list (fixes HTTP 422 on
gh workflow run -f service=starter-*). Reverted isProdPromotable to
env-map-only (environments.prod.probe), equivalent to the workflow resolve
predicate. Added a regression test asserting shell-docs + all 12 starters
remain in the generated AND committed dropdown.
## Summary
- Fix frontend selection, logo, and docs navigation behavior in shell
docs
- Update link rewriting, search href generation, SEO redirects, and
sitemap handling for frontend docs paths
- Refresh related docs pages and tests across framework and frontend
routes
## Testing
- Added and updated unit tests for frontend options, link rewriting,
search hrefs, SEO redirects, and framework shell layout
- Added route-level coverage for the llms-mdx endpoint
Add a new node/TypeScript-backed AWS Strands showcase integration at
showcase/integrations/strands-typescript.
Backend: a node/TS agent server (src/agent/) built on @strands-agents/sdk
`Agent`/`tool` wrapped in @ag-ui/aws-strands `StrandsAgent` and served via
@ag-ui/aws-strands/server (`createStrandsApp`/`addStrandsExpressEndpoint`),
modeled on the upstream ag-ui aws-strands TS example server and the
langgraph-typescript infra. A single shared agent at "/" serves most demos
(tools, shared state via toolBehaviors/stateContextBuilder, HITL,
sub-agents), with tool-free specialized agents mounted at /voice,
/byoc-hashbrown, /byoc-json-render. model-factory targets OpenAI chat
completions and honors OPENAI_API_KEY / OPENAI_BASE_URL so it works behind
the showcase aimock proxy. Node-based Dockerfile + entrypoint run the agent
server (:8000) alongside the Next.js frontend.
Frontend mirrors the strands (Python) sibling's demo set and the
langgraph-typescript conventions, with HttpAgent routes proxying to the TS
agent server.
Scope: base integration + standard demos only. A2UI / declarative-gen-ui /
a2ui-fixed-schema is intentionally excluded (no A2UI agents, routes, demos,
or deps) and layered on later.
Platform wiring (mirrors langgraph-typescript): docker-compose local/dev
services on host port 3119, local-ports.json, packages.json, slug-map.ts
(born-in-showcase), showcase_build.yml matrix + path filter + metadata,
shell-docs/dashboard registries, and a logo asset. The python strands
integration is untouched.
## Summary
Fixes two correctness bugs in the showcase staging→prod promote path
(`showcase/bin/railway`), discovered + live-validated while promoting
the full 19-service cluster.
**Bug #1 — promote pinned the wrong digest.** `resolved_prod_image`
re-resolved the mutable `:latest` tag against *current* GHCR instead of
pinning the digest staging is actually *running*
(`latestDeployment.meta.imageDigest`). When `:latest` drifted after
staging deployed, promote pushed an unvalidated (and once, regressed)
image to prod. Now pins staging's running digest. Adds a loud `⚠️
STAGING DRIFT` warning (promote stdout + `STAGING_DRIFT_MARKER:` →
`promote-fleet.sh` aggregation → both Slack payloads) when staging's
running digest ≠ current `:latest`, so the gap is visible without
blocking the promote.
**Bug #2 — the pin never activated.** `pin_and_verify` used
`serviceInstanceRedeploy`, which replays the *existing* deployment's old
image rather than the just-pinned `source.image`. Config showed the new
digest while prod kept serving the old one (this is why earlier promotes
"succeeded" while prod stayed broken). Switched to
`serviceInstanceDeployV2` + a new `verify_serving_digest!` gate that
polls the new deployment to SUCCESS and **fails loud** if the running
digest ≠ pinned.
Plus CR-round hardening: P2 in-flight race check now reads
`meta.imageDigest` (was dead on tag-form staging) and skips on
`--digest` override; `detect_staging_drift` fails loud (WARN) on
GHCR-resolve failure instead of swallowing; `--digest` override
suppresses spurious drift; `drift_line` LF-stripped at the
`GITHUB_OUTPUT` boundary; multi-service drift join fixed; fallback-log
drift preserved.
## Commits
1. `fix(showcase): pin prod to staging's running digest + loud
staging-drift warning`
2. `fix(showcase): activate prod pin via serviceInstanceDeployV2 +
verify running==pinned`
3. `fix(showcase): harden promote P2 race check + refresh ivar-lint
allowlist`
## Validation
- Live red-green on real Railway: claude-sdk-python prod flipped from
stale → pinned digest via the fixed CLI; all 19 cluster services
promoted green; 5 previously-degraded backends (ag2, llamaindex,
pydantic-ai, ms-agent-python, strands) recovered.
- 15/15 Ruby specs + 15/15 bats green; ruby -c, shellcheck (CI
invocation), actionlint clean.
- 3-round cr-loop (7 agents/round) converged to zero bucket-(a).
## Follow-ups (not in this PR)
- Defensive `.to_s.empty?` on `meta.imageDigest` extraction
(can't-happen on real Railway).
- Test-quality nits (capture_io scoping, weak bats glob, shared mock
fixture).
- Pre-existing verify-prod `succeeded_csv`/`GITHUB_OUTPUT` coupling
(graceful-degraded, audited STAY_IN_C).
- `deploy-to-railway.ts` births prod on `:latest` (the root provisioning
gap); CLI↔workflow notify equivalence (PR2).
## Test plan
- [ ] CI green on PR HEAD
- [ ] (post-merge) a real `gh workflow run showcase_promote.yml` shows
the drift line in the #team-showcase notification when staging is behind
:latest
## Summary
Two follow-up fixes that complete the pinned-prod / floating-staging
contract for the showcase fleet (the contract enforced by the promote
CLI in #5566). Prod services must be digest-pinned (`@sha256`), staging
floats `:latest`.
**Fix 1 — `showcase/scripts/deploy-to-railway.ts`: provision prod
digest-pinned, not `:latest`.**
Prod services were being *born* on the mutable `:latest` tag, then later
pinned only at promote time. Now they are born pinned to a resolved
`@sha256` digest at create time, via a new TS GHCR resolver that mirrors
the Ruby promote CLI (`/token` exchange → manifest HEAD →
`Docker-Content-Digest`). Resolution failure is **fail-loud**
(`process.exit(1)`, never a `:latest` fallback). `goLive` asserts the
prod `source.image` is digest-pinned (`assertProdDigestPinned`,
refactored to be dependency-injectable and to throw a typed
`ProdPinError` instead of exiting inline).
**Fix 2 — `showcase/harness/.../image-drift.ts`: stop flagging pinned
prod red.**
Under the pinned-prod contract, prod is intentionally digest-pinned
behind `:latest`, so the image-drift probe was firing false-red on every
prod service. It now renders such prod services **green**
(`pinnedExpected`) while a genuinely missing digest stays **red**.
Staging behaviour is unchanged.
## Verification
- **Red-green proven locally** for both new test surfaces:
- `assertProdDigestPinned` guard: RED = 5 tests `assertProdDigestPinned
is not a function` (untestable inline-exit) → GREEN = 13 passed after DI
refactor; env-mismatch branch: RED = `promise resolved undefined instead
of rejecting` → GREEN after wiring the test's env control.
- Suites: `deploy-to-railway.digest-pin.test.ts` **14 passed**;
`image-drift.test.ts` **26 passed**. Typecheck (scripts + harness) 0
errors; oxfmt + oxlint clean; harness build green.
- **Empirical 6b against live prod** (settled two reviewer
masking-concerns as can't-happen under current config):
- prod harness `SHOWCASE_ENV` is *unset* (not `""`) and
`RAILWAY_ENVIRONMENT_NAME="production"`, so `isProductionEnv()`'s `??`
correctly resolves true → the prod-neutral fix **fires** in prod.
- prod image-drift is discovery-only; all 19 prod `showcase-*` services
are digest-pinned and tag-less, so `expectedTag` resolves to `latest`
for every prod service → a fixed tag cannot reach prod image-drift (no
false-green).
## Review
3-round cr-loop (7 agents/round) converged to zero actionable findings.
One fix-introduced test-scaffolding defect (dead `envId` helper option)
was caught in the confirmation round and fixed. Remaining reviewer notes
are pre-existing issues in untouched goLive/probe code or
theoretical-but-can't-happen-under-live-config items, tracked as
follow-ups (not in scope for this PR).
🤖 Generated with [Claude Code](https://claude.com/claude-code)
## Summary
- remove the retired top-level `docs/` Next app and the disabled
docs-sync workflow/script
- add `docs -> showcase/shell-docs` as a top-level symlink for `cd docs`
muscle memory without restoring the old docs tree
- move the docs model allowlist into `showcase/shell-docs/` and retarget
docs validation/doctest extraction to shell-docs content
- update docs/agent guidance and CI path filters so `docs/` is treated
as an alias, not an active separate docs surface
- tighten the pre-commit package check so non-package docs/tooling
changes do not fan out into the full package matrix
## Validation
- `pnpm exec tsx scripts/validate-doc-model-names.ts`
- `pnpm exec tsx scripts/doc-tests/extract.ts`
- `pnpm exec vitest run
scripts/__tests__/validate-doc-model-names.test.ts
scripts/doc-tests/__tests__/extract.test.ts
showcase/harness/src/cli/eval/scope.test.ts`
- `pnpm exec oxlint showcase/harness/src/cli/eval/scope.test.ts
scripts/doc-tests/extract.ts`
- `git diff --cached --check` before follow-up commit
- `test "$(readlink docs)" = "showcase/shell-docs"`
- `test -f docs/package.json`
- `pnpm exec oxfmt --check .claude/docs/documentation.md
.claude/docs/hooks.md AGENTS.md CLAUDE.md CONTRIBUTING.md
showcase/shell-docs/README.md`
- commit hooks passed
## Notes
- historical docs remain recoverable from
`archive/docs-save-do-not-prune` and `archive/docs-retired-2026-06-17`
- I intentionally left Vercel/project teardown out of this PR; this is
repo cleanup only
Prod services are now born pinned to a resolved @sha256 digest (mirroring
the Ruby promote CLI's GHCR resolver) instead of the mutable :latest tag,
fail-loud on resolve failure, and goLive asserts the prod source.image is
digest-pinned. Adds DI-testable assertProdDigestPinned + coverage.
Bug #1: resolved_prod_image re-resolved :latest at promote time, so prod
could be pinned to a digest different from what staging is actually serving.
Now resolve via staging_running_digest (latestDeployment meta.imageDigest)
and REFUSE when unavailable. Add detect_staging_drift +
emit_staging_drift_warnings to surface (non-fatally) when :latest has moved
past staging's running digest; aggregate markers across the fleet in
promote-fleet.sh (printf join) and plumb the drift_line through
showcase_promote.yml (both Slack payloads + fallback log + GITHUB_OUTPUT
single-line guard). Skip drift detection on the --digest override path.
Ran Shemtov
